CRB Series of handling robots and palletizing robots

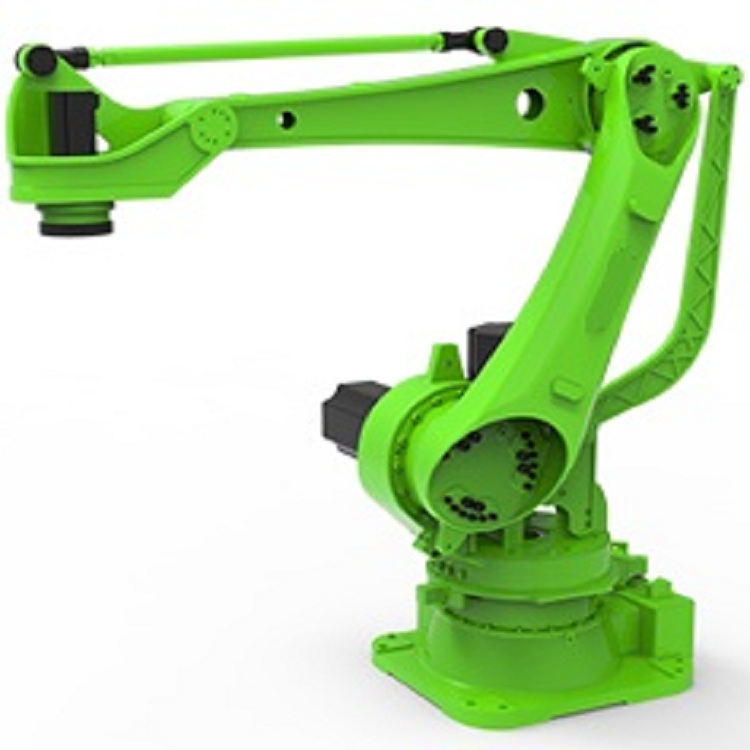

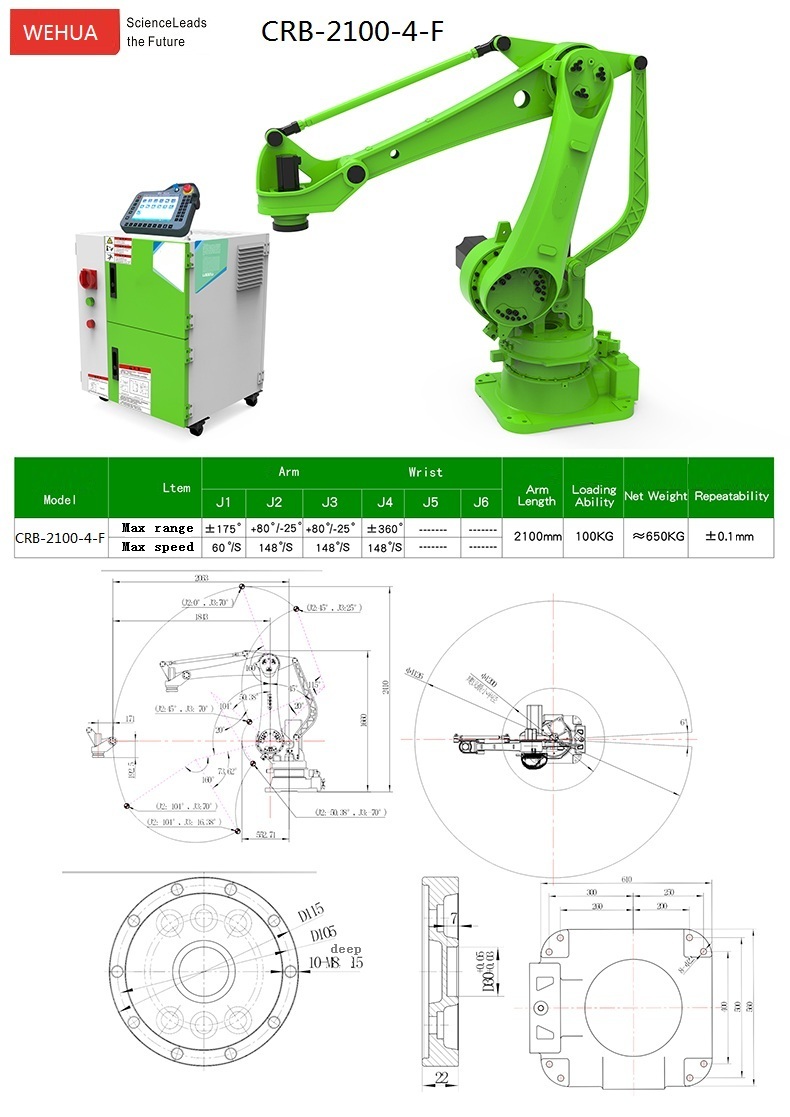

CRB-2100-4-F
Model: CRB-2100-4-F
Action type: Multi joint type
Rated load : 45kg
Motion radius: 1500mm
Weight: 660kg
Number of axes : 4axis
Model | CRB-2100-F-4 | Action type | Multi joint type |
Rated load | 45KG | Motion radius | 2100 |
Repeatpositioning accuracy(mm) | ±0.02 | Protection level: | IP65 |
Scope of work | First axis | ±175º | |
Second axis | +80º/-25º | ||
Third axis | +85º/-25º | ||
Fourth axis | ±360º | ||
Fifth axis | |||
Sixth axis | |||
Max speed | First axis | 60º/sec | |
Second axis | 148º/sec | ||
Third axis | 148º/sec | ||
Fourth axis | 148º/sec | ||
Fifth axis | |||
Sixth axis | |||
Weight（kg） | ≈660 | axis | 4 |
structural style | Series connection | Installation method | Ground installation and bracket installation |
Ambient temperature | 5℃~45℃ | Applicable industry | Parts transmission, stacking, deburring, cutting, etc |
